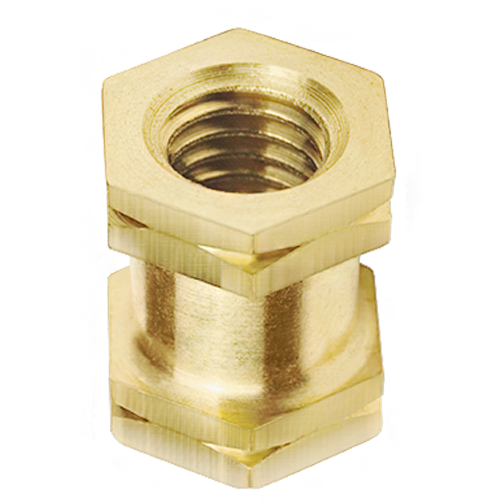

The Series 40 Through-Hole Moulded-In Insert is symmetrical which eliminates the need to orient the Insert when placed onto the core pin in the mould. Series 40 Moulded-In Inserts are manufactured from free-machining brass and are available in a wide range of metric threads from M2.5 to M10. Alternatively, SPIROL’s Series 63 Inserts are made from 2024 aluminium, a lightweight, lead-free grade and offer superior resistance to torque and comparable pull out.

If you would like assistance in selecting the most appropriate Insert for your application, please contact SPIROL for complimentary technical support.

Unit of Measure

Package Type

 N/A Each

Supply Status

 N/A Not Stocked

Units Per Package

 N/A 1

Thread Size

 N/A M6 x 1.0

Width Across Flats (F Ref.)

 N/A 9,53 mm

Length (L)

 N/A 11,13 mm

Minimum Minor Ø

 N/A 4,99 mm

Material Type

 N/A Brass

Material Grade

 N/A ASTM B16
UNS C36000
EN 12164 CW603N CuZn36Pb3

Finish

 N/A Plain

Weight Per Piece

 N/A 0.0037984 kg0.008374 lb

Order Processing Note

 N/A Orders typically ship in 2-3 business days. Orders received after 3pm EST will be processed on the next business day.
