Series 65 Aluminium Blind End Moulded-In Inserts

Select Currency:

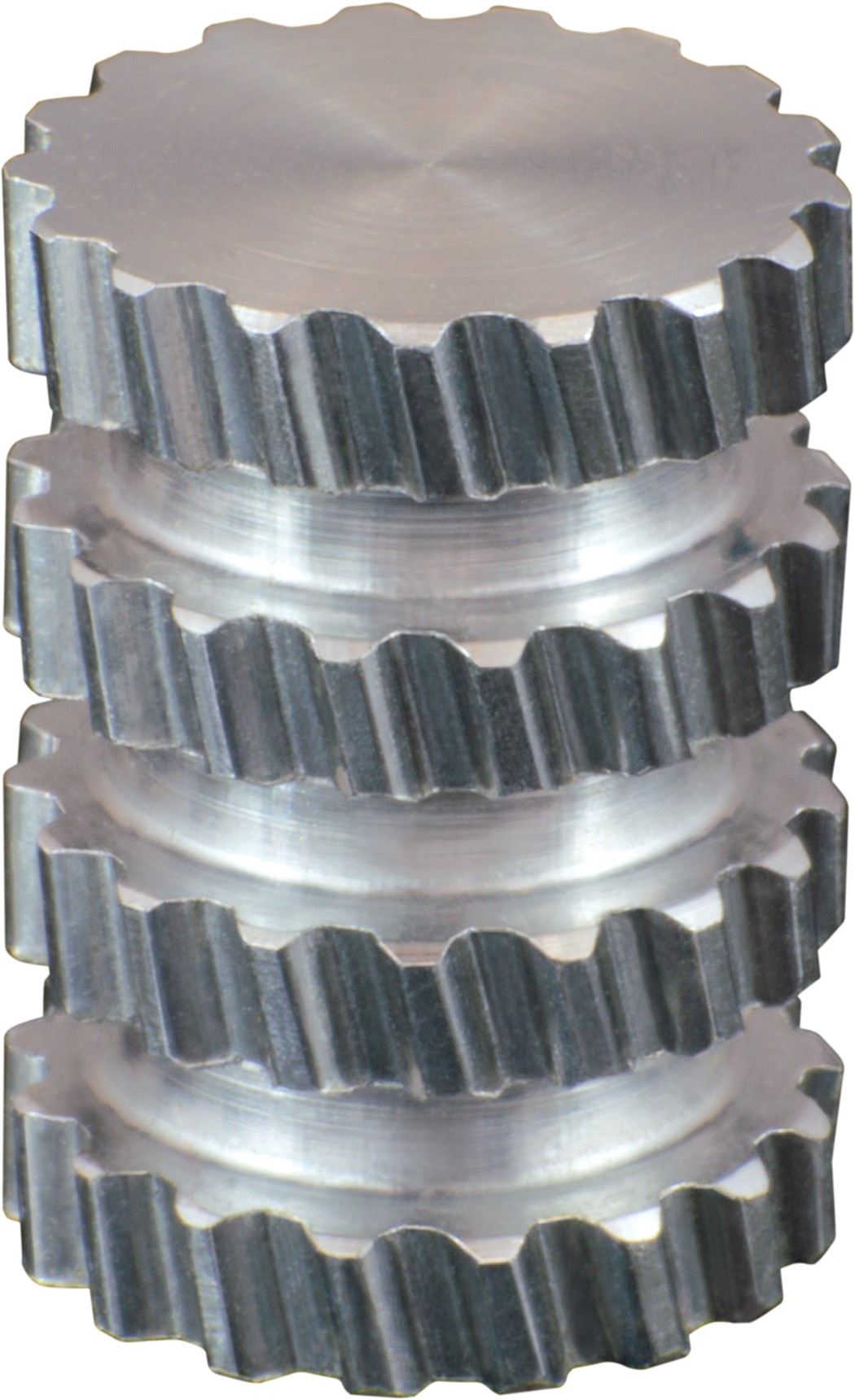

Series 65 Blind End Moulded-In Inserts are designed for maximum pull-out and torque performance, and are often the Insert of choice for thermosets and engineered plastics with a high percentage of filler. The minor thread diameter tolerance is controlled to ensure positive positioning and perpendicularity of the Insert on the core pin during the moulding process. The Series 65 is the same body style as the Series 63 Through-Hole Insert, but in a blind ended version. Series 65 Inserts are made from lightweight, lead-free 2024 aluminium, and are available in inch threads ranging from 8-32 to 5/16-18.

If you don’t see what you are looking for in our standard offering (including thread size, length, quantity, etc.), please feel free to contact SPIROL directly at info-uk@spirol.com or call any one of our global offices for complimentary Application Engineering assistance!

1 - 4 of 4 | Results Per Page | | Unit of Measure

Request Information Compare Items Request High Volume Quote Add To Cart

Item #	Supply Status	Units Per Package	Thread Size	Outer Ø (A)	Length (L)	Minimum Minor Ø	Material Type	Finish	Price per Package Unit

279430	N/A Stocked	N/A 150	N/A 8-32	N/A .272 in	N/A .380 in	N/A .1365 in	N/A Aluminum	N/A Plain	€58.27
279431	N/A Stocked	N/A 150	N/A 10-24	N/A .309 in	N/A .459 in	N/A .1495 in	N/A Aluminum	N/A Plain	€75.05
279432	N/A Stocked	N/A 100	N/A 1/4-20	N/A .367 in	N/A .610 in	N/A .2005 in	N/A Aluminum	N/A Plain	€83.71
279433	N/A Stocked	N/A 75	N/A 5/16-18	N/A .463 in	N/A .697 in	N/A .2575 in	N/A Aluminum	N/A Plain	€113.21

1 - 4 of 4 | Results Per Page | | Unit of Measure
