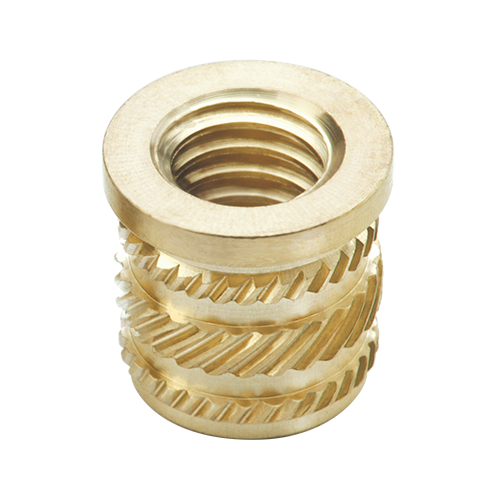

Series 28 Short - Headed Heat / Ultrasonic (Straight Hole) Inserts

Select Currency:

SPIROL’s Series 28 Short Headed Metric Inserts are designed for straight holes with a 1° maximum (included) draft angle and are typically installed with heat or ultrasonic vibration. The Series 28 Short Headed Inserts are similar to the Series 27 Short Inserts with the addition of a head for increased bearing area. The Series 28 Headed Inserts have the same body style as the standard Series 30 Short Headed Inserts with a reduced center knurl diameter for plastic assemblies where the boss diameter is less than 2x the body diameter of the Insert. The Series 28 Inserts are also available in a Long version for applications requiring more demanding torque and/or pull-out resistance. The SPIROL’s Series 28 Headed Metric Inserts are available to order with threads ranging in size from M2 up to M6.

If you would like assistance in selecting the most appropriate Insert for your application, please contact SPIROL for complimentary technical support.

1 - 7 of 7 | Results Per Page | | Unit of Measure

Request Information Compare Items Search by Specification Request High Volume Quote Add To Cart

Item #	Supply Status	Units Per Package	Thread Size	Overknurl Ø (A)	Head Ø (H)	Length (L)	Material Type	Finish	Price per Package Unit

115071	N/A Not Stocked	N/A 1	N/A M2 x 0.4	N/A 3.56 mm	N/A 4.70 mm	N/A 3.18 mm	N/A Brass	N/A Plain	QUOTE
115078	N/A Not Stocked	N/A 1	N/A M2.5 x 0.45	N/A 4.50 mm	N/A 5.49 mm	N/A 3.56 mm	N/A Brass	N/A Plain	QUOTE
151268	N/A Not Stocked	N/A 1	N/A M3 x 0.5	N/A 4.50 mm	N/A 5.49 mm	N/A 3.56 mm	N/A Brass	N/A Plain	QUOTE
151270	N/A Not Stocked	N/A 1	N/A M3.5 x 0.6	N/A 5.28 mm	N/A 6.27 mm	N/A 3.81 mm	N/A Brass	N/A Plain	QUOTE
151272	N/A Not Stocked	N/A 1	N/A M4 x 0.7	N/A 6.12 mm	N/A 7.06 mm	N/A 4.70 mm	N/A Brass	N/A Plain	QUOTE
151275	N/A Not Stocked	N/A 1	N/A M5 x 0.8	N/A 6.91 mm	N/A 7.87 mm	N/A 6.35 mm	N/A Brass	N/A Plain	QUOTE
151277	N/A Not Stocked	N/A 1	N/A M6 x 1.0	N/A 8.51 mm	N/A 9.45 mm	N/A 7.92 mm	N/A Brass	N/A Plain	QUOTE

1 - 7 of 7 | Results Per Page | | Unit of Measure
